AURORA G 8000 -­ 20000  is a series of extremely powerful single-color laser projectors with power level from 8000 mW to 20000 mW. You will never worry about lacking of power for any of your events!

Light Source

AURORA G 8000 : 8000-­‐8500 mW @ 532nm DPSS

AURORA G 10000 : 10000-­‐11000 mW @ 532nm DPSS

AURORA G 15000 : 15000-­‐17000 mW @ 532nm DPSS

AURORA G 20000 :20000-­‐22000 mW @ 532nm

Modulation : Analog 30KHZ

Laser Class :  Class IV

Scanner

Galvo : 40K (EMS 8000 60K upon request)
Scan Angle : 60° Max (Optical)

Optional Components

Embedded Controller:  1. Moncha.net  2. Pangolin FB4.
Slide-type window Cover / hardware beam mask

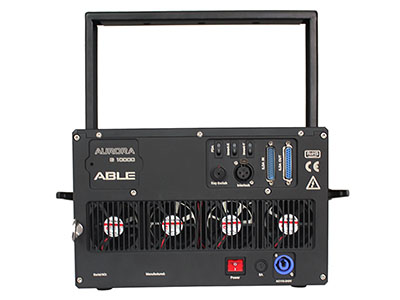

Interfaces & Controls

Control :  ILDA in (Differential), ILDA out
Safety :  Key Switch, FDA Scan Safe Switch
Remote Interlock :  3 - pins XLR
Scan Image Invert :  Invert – X , Invert – Y
Mains : Neutrik PowerCon®

Electric

Operating Voltage :  AC 110V-240V
Power Consumption: 500W Max

Physical

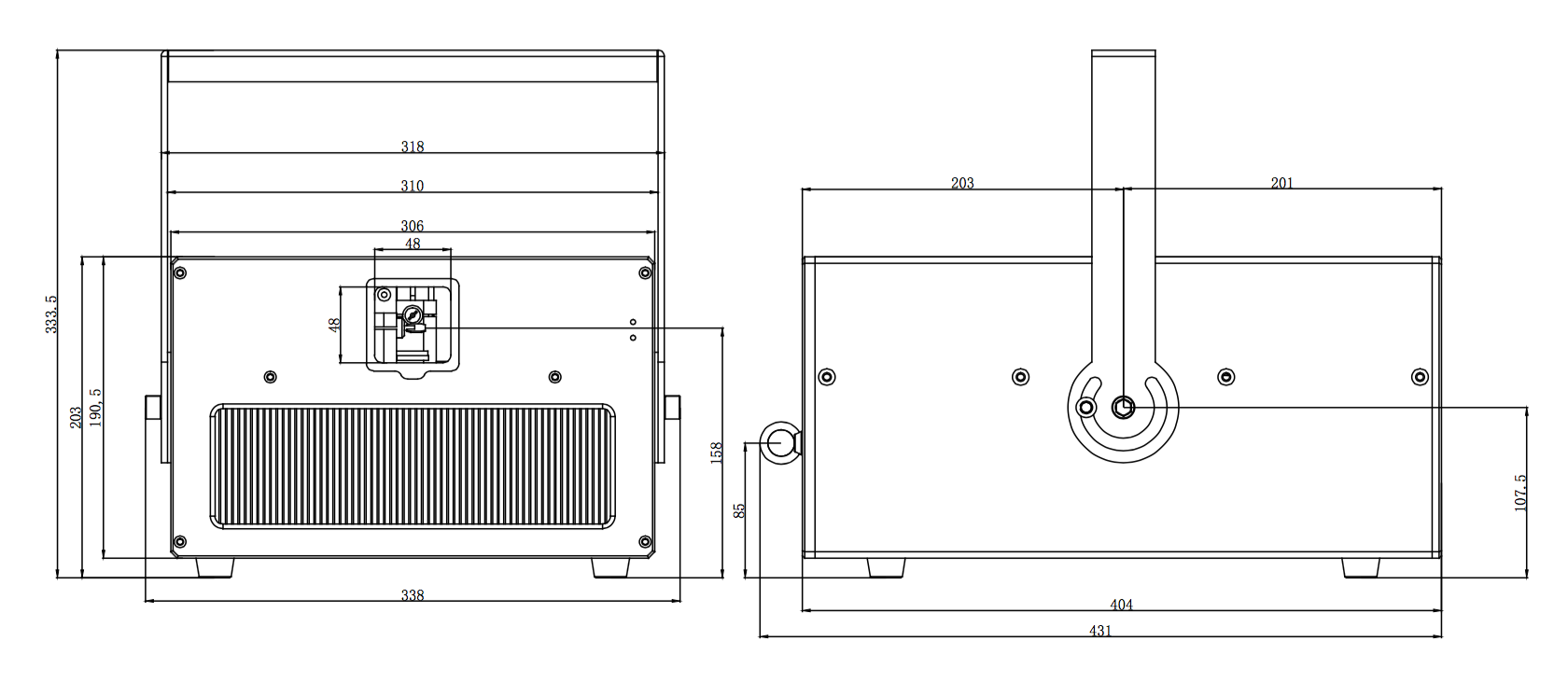

L * W * H :  430mm * 338mm * 191mm (Without Yoke, Without feet)
Weight : 21 kg (Without Yoke)
Housing Materials :  Black Anodized Aluminum
IP grade :  IP54
Packaging :  Flight case

Compliance

Compliance:  FDA/CDRH, CE, RoHS

Warranty

Warranty:  12 months after delivery
