PRIME RGB 27000 /24000 /20000

Specifications & Features

The Flagship of PRIME RGB family is here!

Download Data Sheet

PRIME RGB 27000 is a full-color laser projector that could meet your requirement for any Mega-scale outdoor laser shows and installations.   Its’ high power and extreme sharp beam enables it the capability to take care of any job where power density is the most needed.



PRIME RGB  27000 has 3 sub-models to fit the needs of different power range and budget.


Spec Power @ Light Source



PRIME RGB 20000
PRIME RGB 24000
PRIME RGB 27000

R: 4440 mW@637nm
5550 mW@637nm
6660 mW@637nm
Single-Mode Direct-Inject diodes
G: 6000 mW@520nm
7000 mW@520nm
8000 mW@520nm
Multi-Mode Direct-Inject diodes
B: 9600 mW@445nm
11200 mW@445nm
12800 mW@445nm
Multi-Mode Direct-Inject diodes


Total Output @ Projector Window


PRIME RGB 20000
PRIME RGB 24000
PRIME RGB 27000
15000 - 15800 mW
17500 - 18500 mW
21000 - 22000 mW


Beam Profile

Beam Diameter(Projector Window) : ~5.5mm * 6.2mm

Divergence :  ~ 1.0 mrad (Full angle)

Modulation : Analog 50KHZ

Laser Class :  Class IV

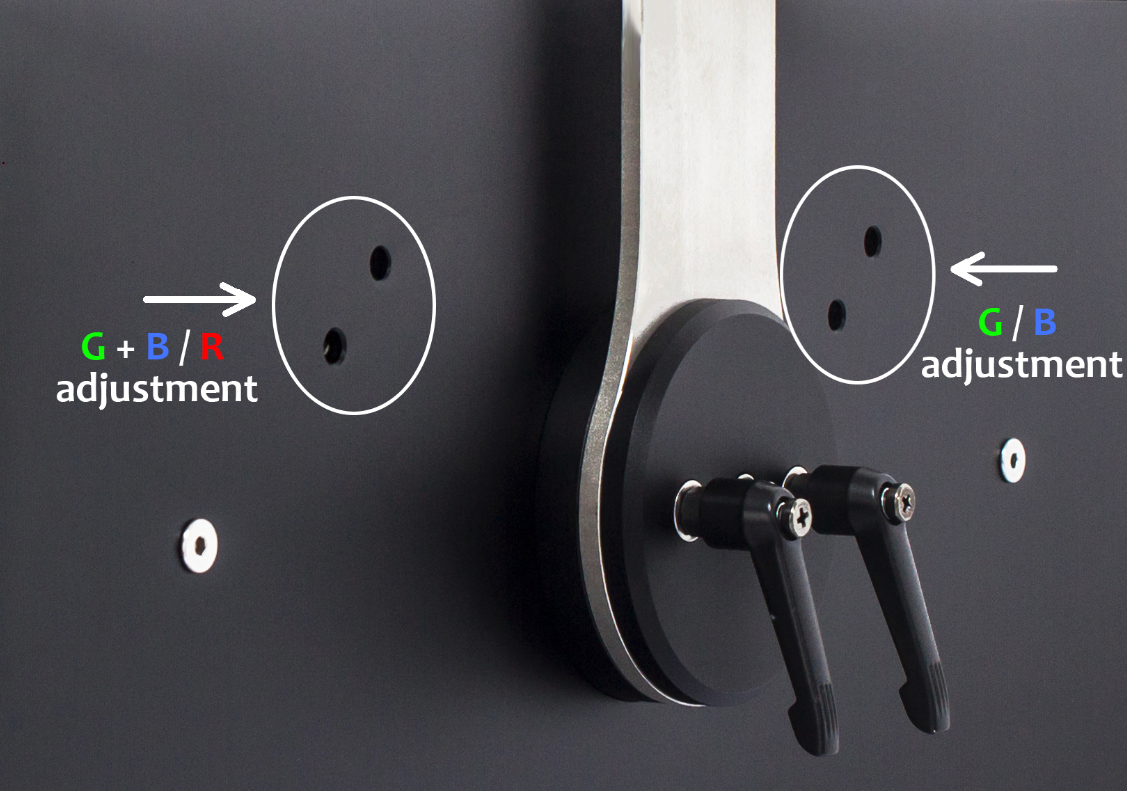

Dichro access through side panel  for easy beam re-alignment



Scanner

Galvo : 35Kpps @ 8° ILDA test pattern (EMS 8000 40K upon request)
Scan Angle : 60° Max Optical ( 54° Max on EMS 8000)


Interfaces & Controls

Control :  ILDA in (Differential) , ILDA out
Safety :  Key Switch , Scan-Fail-safe Switch
Remote Interlock :  5 pins XLR
Scan Image Invert :  Invert – X , Invert – Y
Color adjustment :  Intensity R, G, B (0-100%)
Mains : Neutrik PowerCon®


Optional Components

Embedded Controller :  Pangolin FB4 (upon request)
Scanner :  EMS 8000 40k


Thermal Control

Cooling :  Active Cooling / Heating by TEC Peltier Elements
Ventilation : 60mm Low noise thermal controlled fan * 5


Electric

Operating Voltage :  AC 110V-240V
Power Consumption: 650W Max


Physical

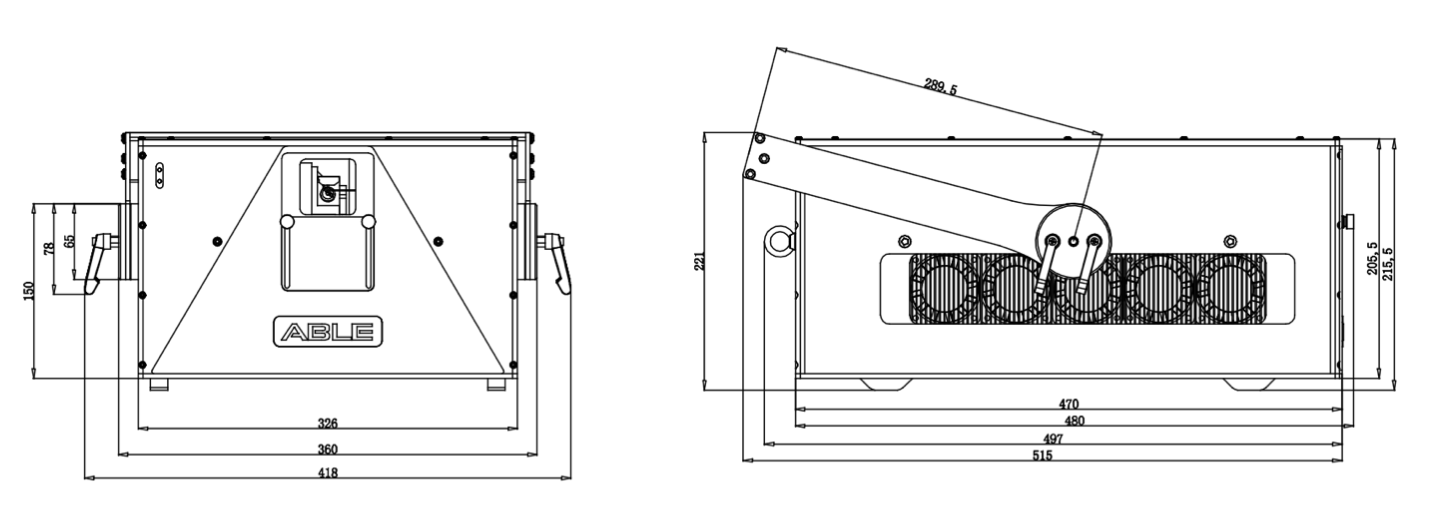

L * W * H :  470mm * 326mm * 215mm (Without Yoke)
Weight : 30kg (Without Yoke)
Housing Materials :  Black Anodized Aluminum
IP grade :  IP52
Packaging :  Flight case / Peli Case




Compliance

Compliance:  FDA/CDRH, CE


Warranty

Warranty: 24 months parts and labor
