PRIME RGB 7500 / 5300 / 3000

Specifications & Features

Compact! - Powerful! - Brilliant! - Sharp!

PRIME RGB 7500 / PRIME RGB 5300 / PRIME RGB 3000 is a full-color laser projector designed for large-scale indoor shows and also for small-scale outdoor events.

Its compact size and extremely powerful output have made it a perfect choice for mobile show applications as well as fix installation projects!

Specifications

Light Source

Model	PRIME RGB 7500	PRIME RGB 5300	PRIME RGB 3000
Red :	2220 mW @ 637nm	1480 mW @ 637nm	680 mW @ 637nm	Single Mode Direct-Inject diodes
Green :	2000 mW @ 520nm	2000 mW @ 520nm	1000 mW @ 520nm	Multi-Mode Direct-Inject diodes
Blue :	4000 mW @ 445nm	2000 mW @ 445nm	1600 mW @ 445nm	Multi-Mode Direct-Inject diodes
Total Output @ Projector Window:	6200 ~ 6600 mW	4500 ~ 4900 mW	2700 ~ 2900 mW

Beam Diameter(Projector Window) : ~ 4 mm

Divergence (Full angle) : < 0.9 mrad (Full angle)

Modulation : Analog 50KHZ

Laser Class : Class IV

Scanner

Galvo : 40Kpps @ 8° ILDA test pattern (EMS 8000 60K upon request)
Scan Angle : 60° Max (Optical)

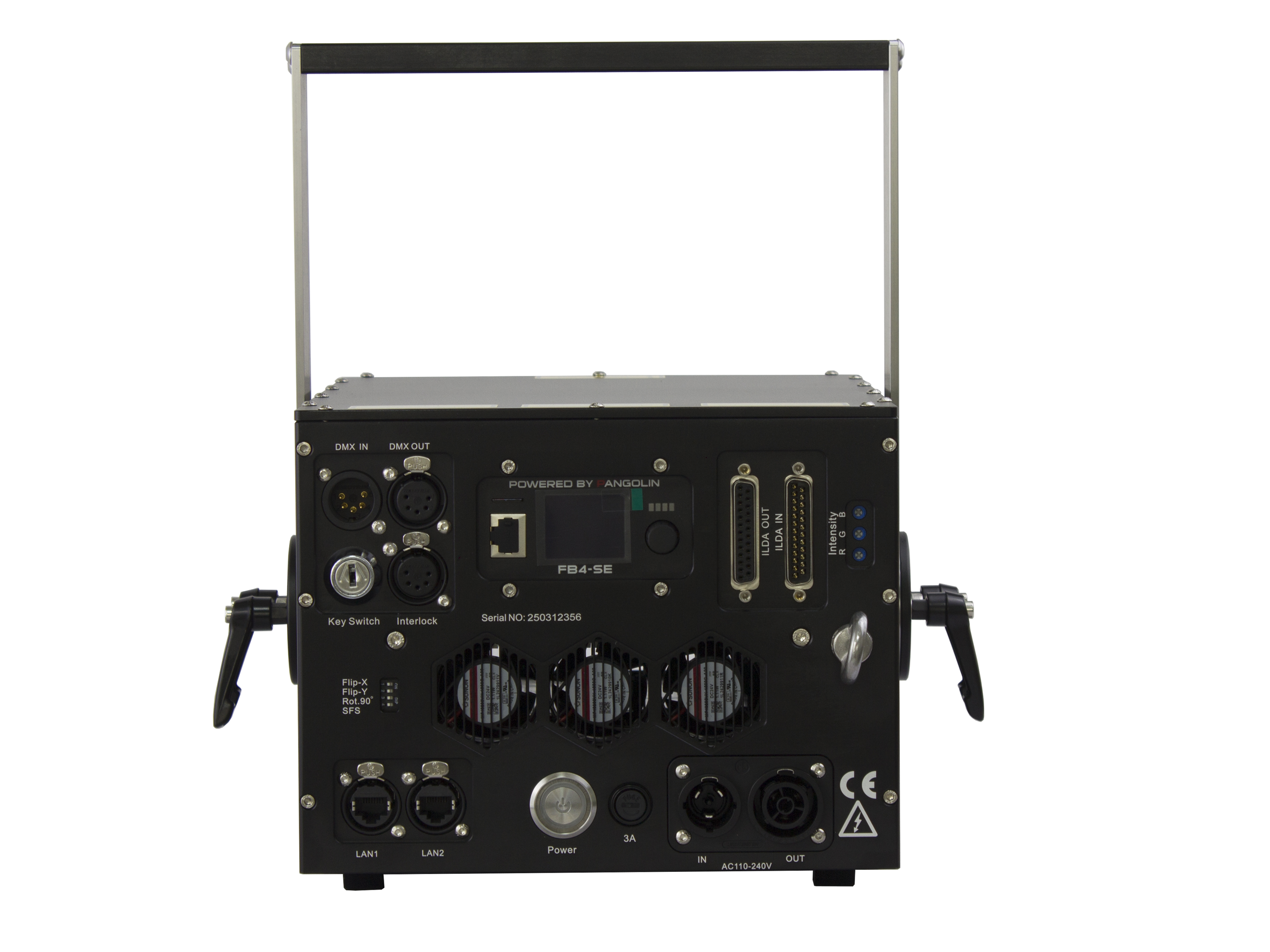

Interfaces & Controls

Control : ILDA in (Differential) , ILDA out

In-Built Controller : Pangolin FB4 (upon request)

DMX / Ethernet : Depending on the FB4 board version embedded.

Safety : Key Switch , Scan-Fail-Safe Switch
Remote Interlock : 5 pins XLR
Scan Image Invert : Invert – X , Invert – Y
Color adjustment : Intensity R, G, B (0-100%)
Mains : Neutrik PowerCon® TRUE ONE TOP

Thermal Control

Cooling : TEC Peltier Elements
Ventilation : 40mm Low noise fan * 3

Electric

Operating Voltage : AC 110V-240V
Power Consumption: 280W Max

Physical

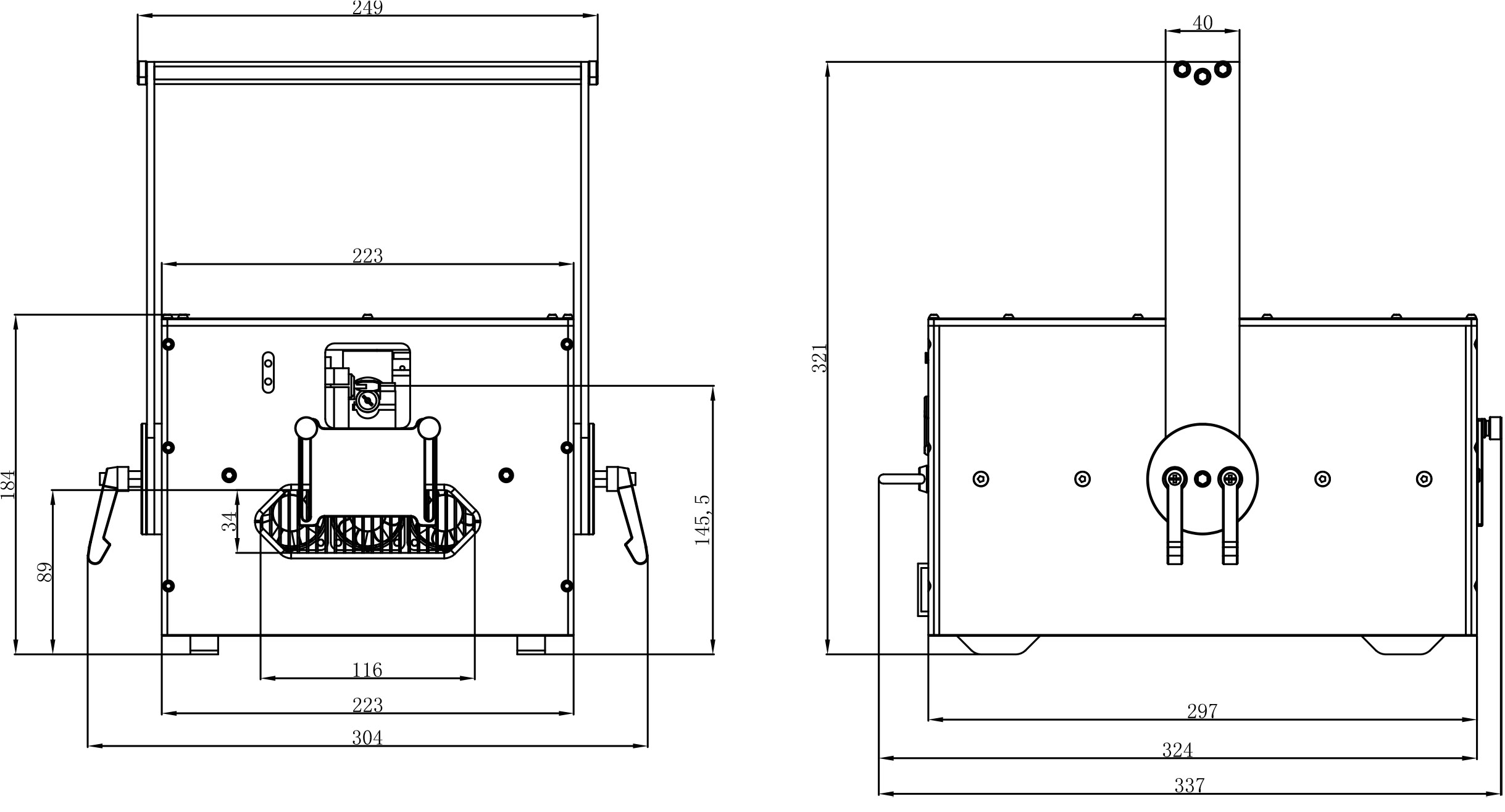

L * W * H : 324mm * 223mm * 174mm (Without Yoke, Without feet)
Weight : 11 kg (Without Yoke)
Housing Materials : Black Anodized Aluminum
IP grade : IP54
Packaging : Flight case

Compliance

Compliance: FDA/CDRH, CE

Warranty

Warranty: 24 months parts and labor
