PRIME RGB 7500 GT / 5300 GT

Specifications & Features

PRIME RGB 7500 / 5300 + versatile grating effects

Download Data Sheet

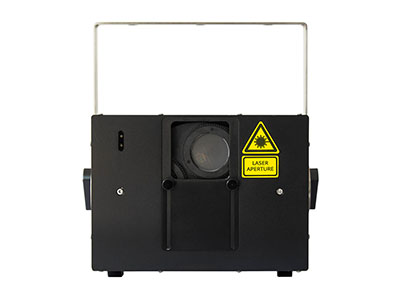

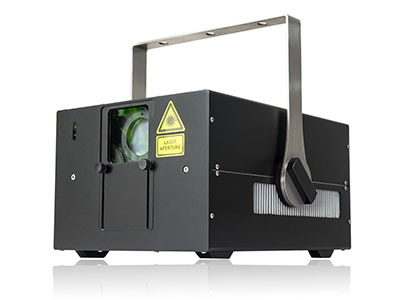

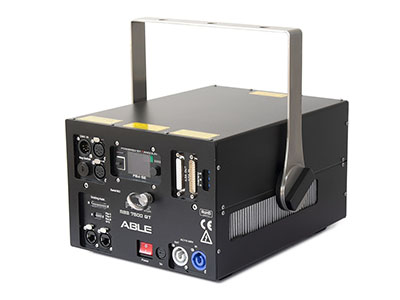

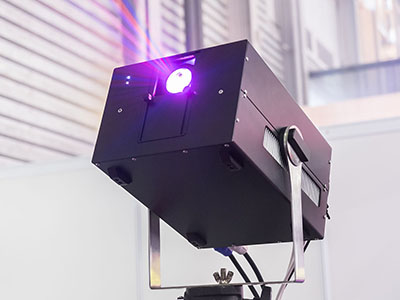

PRIME RGB 7500 GT / 5300 GT is a very versatile laser projector with powerful yet compact body.

The in-built laser grating module gives you 3 extra stunning laser effects that can be controlled using DMX.



Specifications

Light Source


Model
 PRIME RGB 7500 GT
PRIME RGB 5300 GT
Red :
2220 mW @ 637nm
1480 mW @ 637nm
Green :
2000 mW @ 520nm
2000 mW @ 520nm
Blue :
4000 mW @ 445nm
2000 mW @ 445nm
Total Output@ Projector Window: 6200 ~ 6600 mW
4500 ~ 4900 mW


Beam Diameter(Projector Window) : <4.0 mm

Divergence (Full angle) :  <0.9 mrad (Full angle)

Modulation : Analog 50KHZ

Laser Class :  Class IV


Scanner

Galvo : 40K (EMS 8000 60K upon request)
Scan Angle : 60° Max (Optical)


Grating Module

In-built effects                           3 effects -> Line /  Burst / Lumia-1

User-replaceable effects              2 effects -> Lumia - 2 /  Lumia - 3 (both included in the delivery)

DMX Channels                            2 Channels

Gobo Rotation Speed                  0.08 RPM(min) - 12RPM(max)

DMX Channel Assignment            refer to Data-sheet

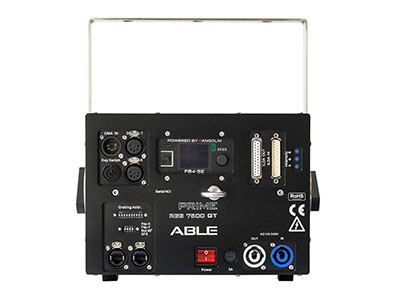

Interfaces & Controls

Control :  ILDA in (Differential) , ILDA out

Grating Control : DMX-in / DMX-out, 5 pins XLR
Safety :  Key Switch , FDA Scan-safe Switch
Remote Interlock :  5 pins XLR
Scan Image Invert :  Invert – X , Invert – Y, Rotate Z 90 degree
Color adjustment :  Intensity R, G, B (0-100%)
Mains : Neutrik PowerCon®


Optional Components

Controller : Pangolin FB4 (upon request)

Light Source : 462nm for BLUE instead of 445nm

Scanner : EMS 8000 60K



Thermal Control

Cooling :  TEC Peltier Elements
Ventilation : 40mm Low noise fan *4


Electric

Operating Voltage :  AC 110V-240V
Power Consumption: 280W Max


Physical

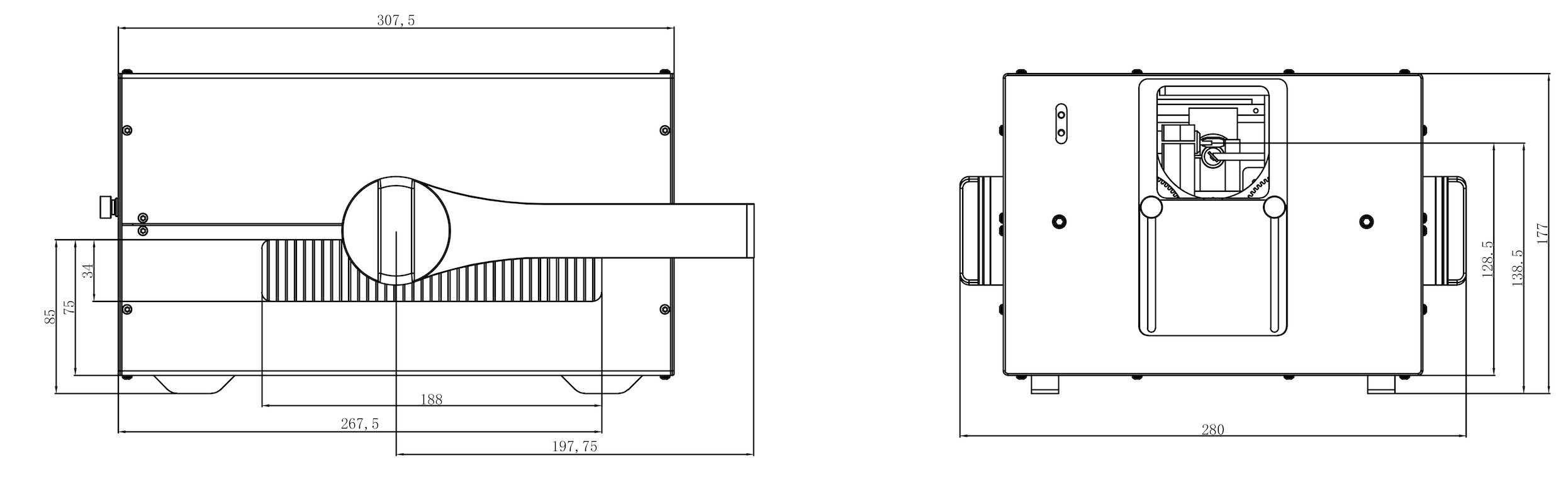

L * W * H :  308mm * 230mm * 167mm (Without Yoke, Without feet)
Weight : 14kg (Without Yoke)
Housing Materials :  Black Anodized Aluminum
IP grade :  IP54
Packaging :  Flight case



Compliance

Compliance:  FDA/CDRH, CE, RoHS


Warranty

Warranty: 24 months parts and labor
