PRIME RGB 30000/36000

Specifications & Features



Download Data Sheet

PRIME RGB 30000 /PRIME RGB 36000 is a full-color laser projector that could meet your requirement for any Mega-scale outdoor laser shows and installations.



Specifications

Light Source

Model
 PRIME RGB 30000
PRIME RGB 36000

Red :
8880 mW @ 637nm
8880 mW @ 637nm
Single Mode Direct-Inject diodes
Green :
10000 mW @ 520nm
12000 mW @ 520nm
Multi-Mode Direct-Inject diodes
Blue :
13000 mW @ 445nm
16000 mW @ 445nm
Multi-Mode Direct-Inject diodes

Total Output

@ Projector Window:

27000 ~ 29500 mW
30500 ~ 32500 mW



Beam Diameter(Projector Window) : ~ 8.0 mm

Divergence (Full angle) :  ~ 1.1mrad (Full angle)

Modulation : Analog 50KHZ

Laser Class :  Class IV


Scanner

Galvo : EMS 9000 30Kpps @ 8° ILDA test pattern
Scan Angle : 54° Max


Interfaces & Controls

Control :  ILDA in (Differential) , ILDA out
Safety :  Key Switch , FDA Scan-safe Switch
Remote Interlock :  5 pins XLR
Scan Image Invert :  Invert – X , Invert – Y , Rotate Z 90°
Color adjustment :  Intensity R, G, B (0-100%)
Mains : Neutrik PowerCon® TRUE ONE TOP


Optional Components

Controller :  Pangolin FB4 (upon request)


Thermal Control

Cooling :  TEC Peltier Elements
Ventilation : 80mm Low noise fan * 4


Electric

Operating Voltage :  AC 110V-240V
Power Consumption: 850W Max


Physical

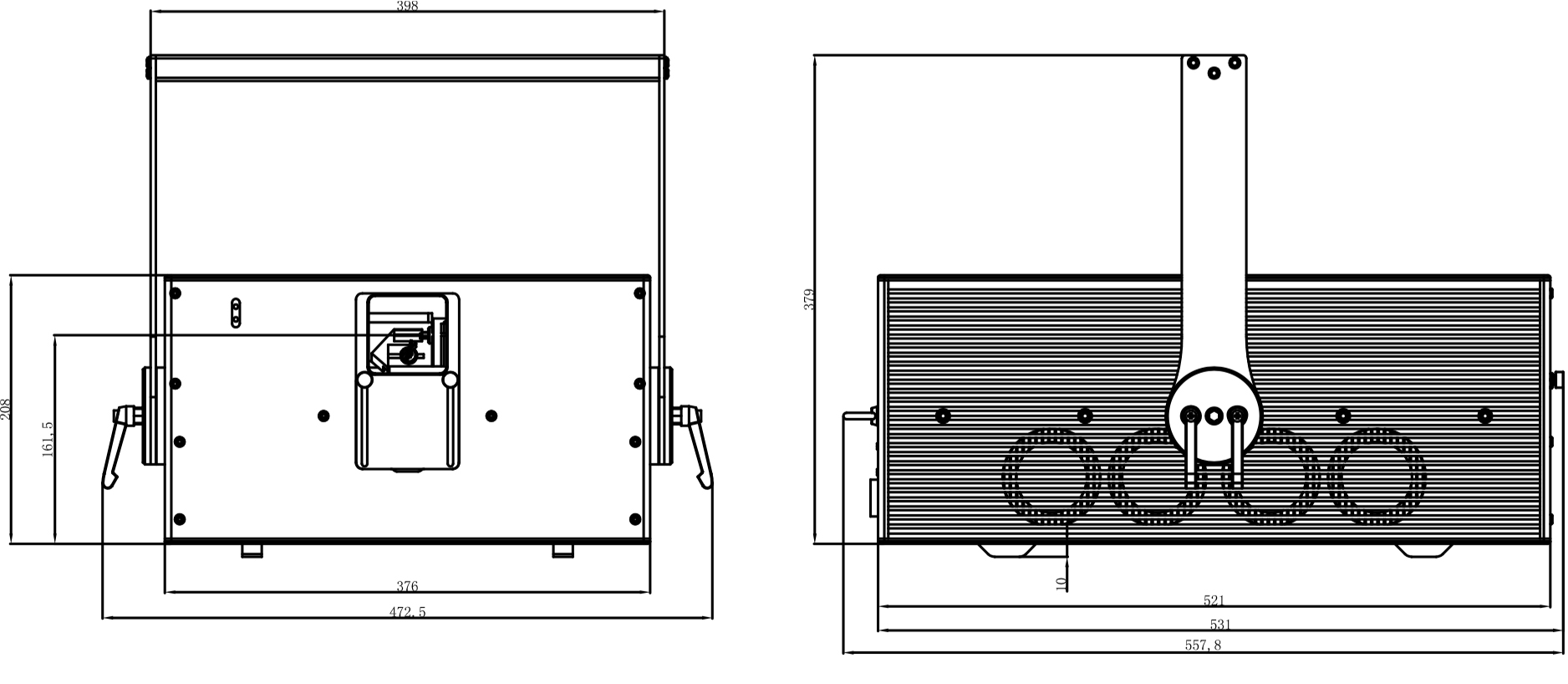

L * W * H :  531mm * 376mm * 208mm (Without Yoke, Without feet)
Weight : 41kg
Housing Materials :  Black Anodized Aluminum
IP grade :  IP52
Packaging :  Flight case


Compliance

Compliance:  FDA/CDRH, CE


Warranty

Warranty: 24 months parts and labor
