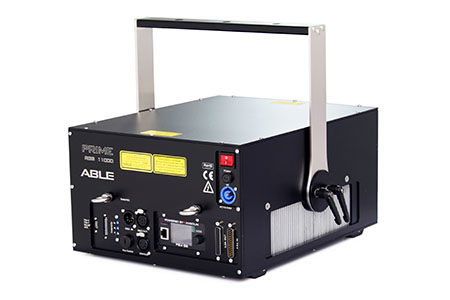

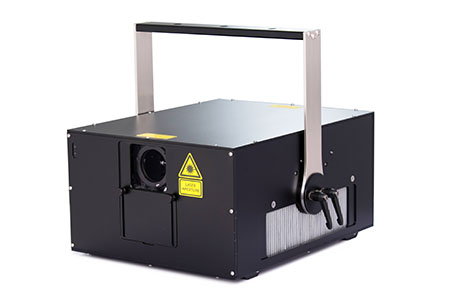

The renowned PRIME RGB 11000 + versatile grating effects

PRIME RGB 11000 is a high-end powerful full-color laser projector that specifically designed for large-scale indoor and small to medium outdoor shows as well as installation projects.

The in-built laser grating module gives you 3 extra stunning laser effects that can be controlled using DMX.

Light Source

Red :       3060 mW @ 637nm               Single Mode Direct-Inject diodes

Green :    4000 mW @ 520nm              Multi-Mode Direct-Inject diodes

Blue :      4000 mW @ 445nm               Multi-Mode Direct-Inject diodes

                                                               (462nm on-request)

Total Output @ Projector Window: 9300mW~10500mW

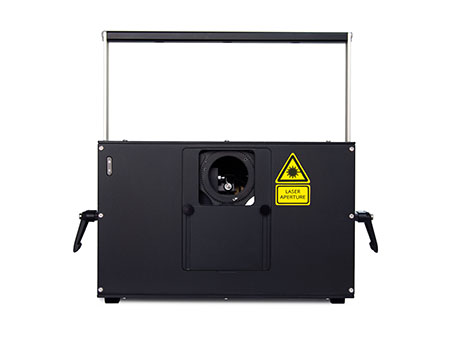

Beam Diameter(Projector Window) : ~5 mm

Divergence (Full angle) :  <0.9 mrad (Full angle)

Modulation : Analog 50KHZ

Laser Class :  Class IV

Scanner

Galvo : 40Kpps @ 8° ILDA test pattern (EMS 8000 60K upon request)
Scan Angle : 60° Max (Optical)

Grating Module

In-built effects                           3 effects -> Line /  Burst / Lumia-1

User-replaceable effects              2 effects -> Lumia - 2 /  Lumia - 3 (both included in the delivery)

DMX Channels                            2 Channels

Gobo Rotation Speed                  0.08 RPM(min) - 12RPM(max)

DMX Channel Assignment            refer to Data-sheet

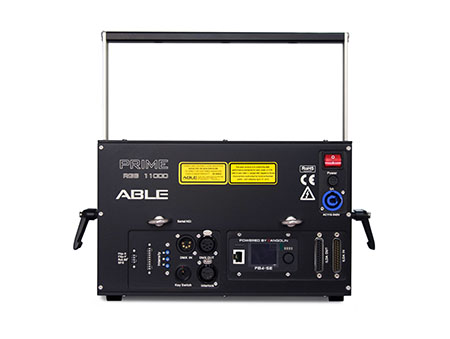

Interfaces & Controls

Control :  ILDA in (Differential) , ILDA out

Grating Control : DMX-in / DMX-out, 5 pins XLR
Safety :  Key Switch , FDA Scan-safe Switch
Remote Interlock :  5 pins XLR
Scan Image Invert :  Invert – X , Invert – Y, Rotate Z 90 degree
Color adjustment :  Intensity R, G, B (0-100%)
Mains : Neutrik PowerCon®

Optional Components

Controller : Pangolin FB4 (upon request)

Light Source : 462nm for BLUE instead of 445nm

Scanner : EMS 8000 60K

Thermal Control

Cooling :  TEC Peltier Elements
Ventilation : 70mm Low noise fan * 3

Electric

Operating Voltage :  AC 110V-240V
Power Consumption: 450W Max

Physical

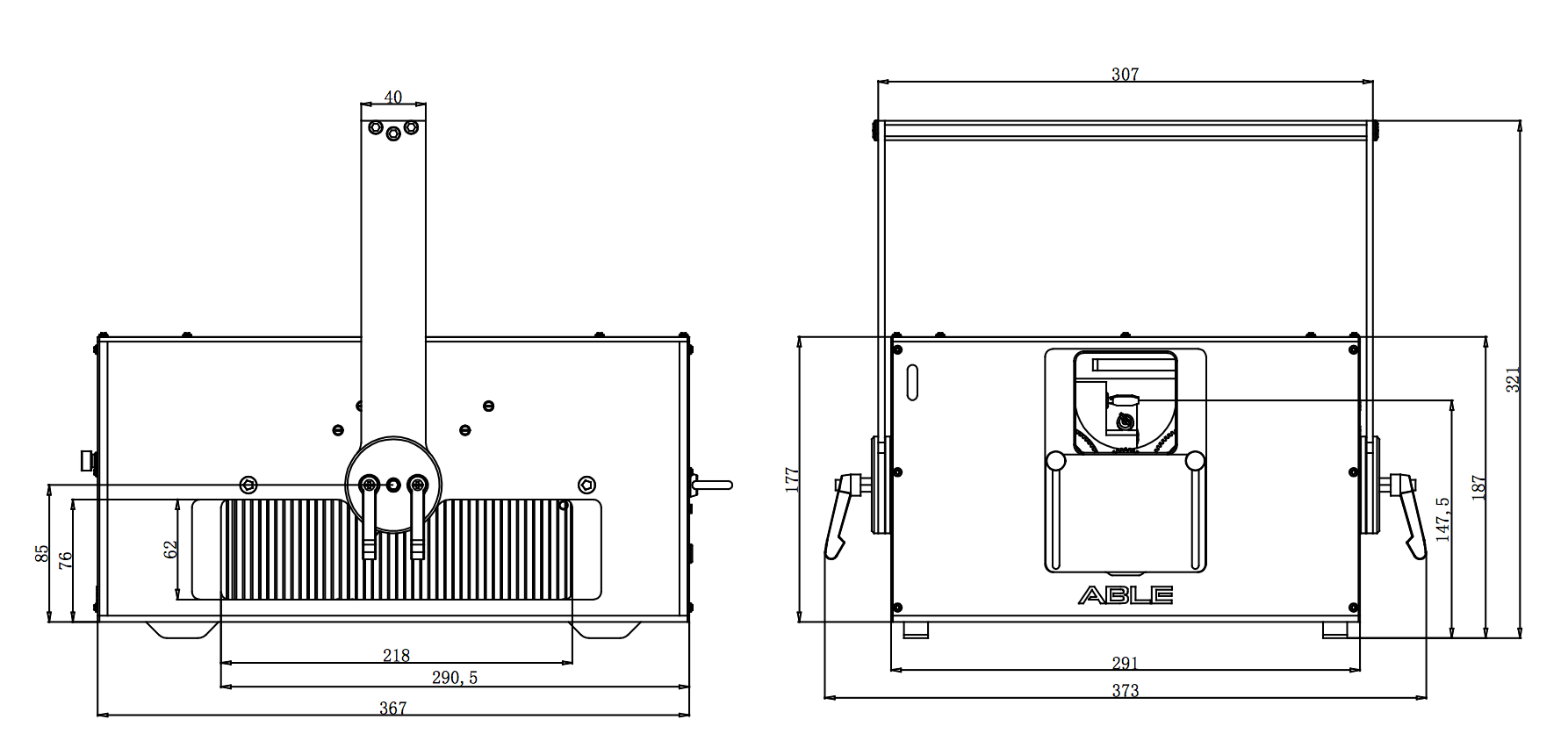

L * W * H :  367mm * 291mm * 177mm (Without Yoke, Without feet)
Weight : 18kg (Without Yoke)
Housing Materials :  Black Anodized Aluminum
IP grade :  IP54
Packaging :  Flight case

Compliance

Compliance:  FDA/CDRH, CE, RoHS

Warranty

Warranty: 24 months parts and labor
