BARRAGE RGB 1500 is a full-color laser beam array. It has 5 individual high power, full color beam outputs with very low divergence.
BARRAGE 1500 allows laser designer to create many forms of stunning visual impacts aside from classical laser shows!

Light Source

Red :      110-120 mW @ 637nm             Single Mode Direct-Inject diodes

Green :    90-100 mW @ 520nm              Single Mode Direct-Inject diodes

Blue :      90-100 mW @ 445nm              Single Mode Direct-Inject diodes

Total Output @ Aperture: 280mW~310mW

Beam Diameter(aperture) : < 4.5 mm

Divergence (Full angle) : < 0.35 mrad (Full angle)

Laser Class :  Class IV

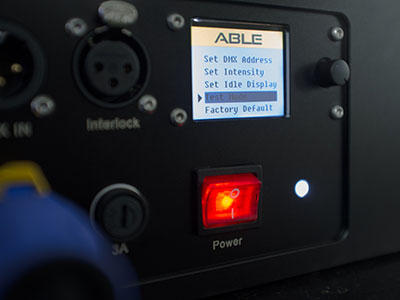

Interfaces & Controls

Control :  DMX In (3-pin), DMX Out(3-pin)
Remote Interlock :  3 pins XLR
Mains : Neutrik PowerCon® for power in and out

Thermal Control

Cooling :  TEC Peltier Elements
Ventilation : 60mm Low noise fan * 4

Electric

Operating Voltage :  AC 110V-240V
Power Consumption: 120W Max

Physical

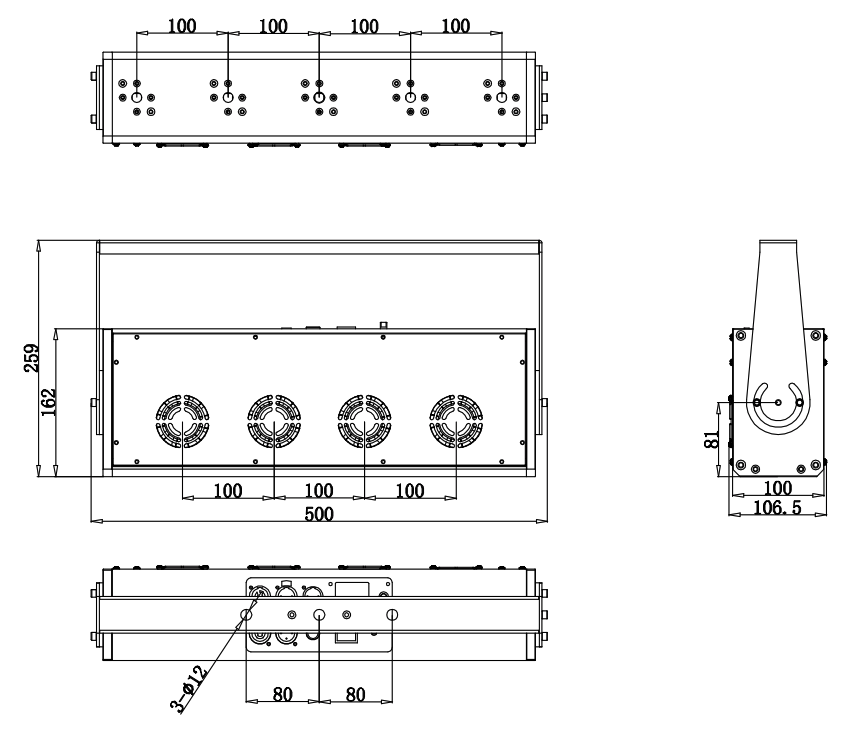

L * W * H :  500mm * 106.5mm * 162mm (Without Yoke)
Weight : 8.5 kg (Without Yoke)
Housing Materials :  Black Anodized Aluminum
IP grade :  IP47
Packaging :  Flight case

Compliance

Compliance:  FDA/CDRH, CE, RoHS

Warranty

Warranty:  12 months after delivery
