ARCHER RGB 5000 is a professional laser system designed specifically for beginners, DJs, clubs, and home or hobby use, while also catering to emerging professionals, corporate events, and lighting experts working on festivals, arenas, tours, and rental productions. It is capable of creating atmospherics, text, graphics, logos, and mapping, offering extensive functionality through its native ILDA connectivity, which allows users to program laser shows easily.
|
|
Light Source
Model
|
ARCHER RGB 5000
|
|
Red :
|
1200 mW @ 638nm
|
|
Green :
|
1200 mW @ 525nm
|
|
Blue :
|
3000 mW @ 450nm
|
|
|
Total Output @
Projector Window:
|
4800 ~ 5000 mW
|
|
Beam Diameter : < 5mm
Divergence (Full angle) : < 1.2mrad
Modulation : Analog 50KHZ
Laser Class : Class IV
Scanner
Galvo : 40kpps @ 8° ILDA test pattern
Scan Angle : 60° Max (Optical)

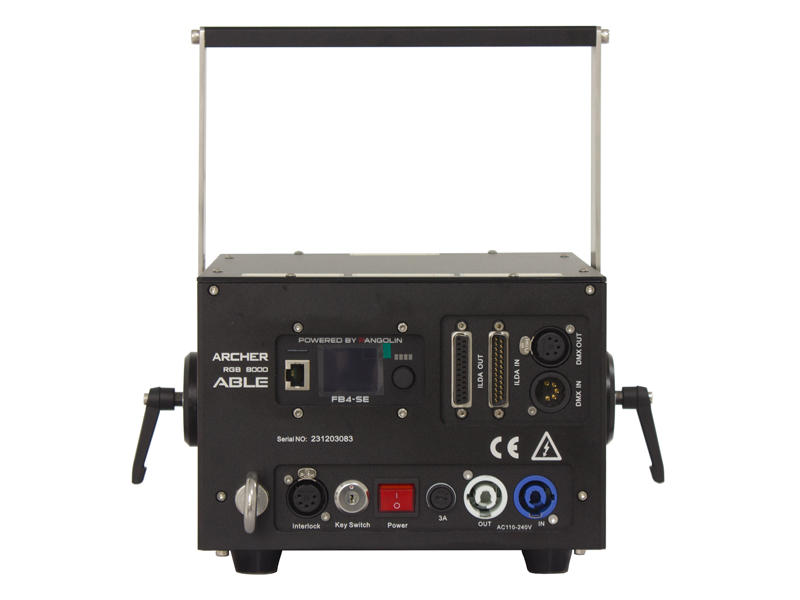

Interfaces & Controls
Control : ILDA in (Differential) , ILDA out
Safety : Key Switch
Remote Interlock : 5-pins XLR
Optional Components
Controller : Pangolin FB4 (upon request)
Window Protection : Slide-type window Cover
Electric
Operating Voltage : AC 110V-240V
Power Consumption: 350W Max
Physical

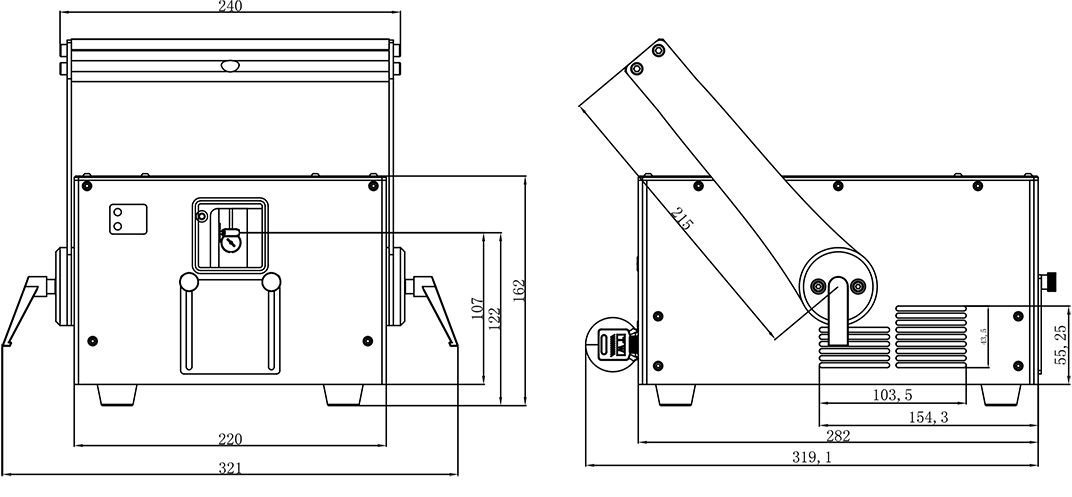

L * W * H : 319mm * 240mm * 162mm (Without Yoke)
Weight : 8.3 kg (Without Yoke)
Housing Materials : Black Anodized Aluminum
IP grade : IP52
Packaging : Carton package
Compliance
Compliance: FDA/CDRH, CE
Warranty
Warranty: 24 months after delivery
