High-performance beam on a budget

ARCHER RGB 10000 is an affordable package designed specifically for emerging professionals in the industry. You can produce atmospherics, text, graphics, logos, and mapping. This makes it an ideal choice for events such as clubs, theaters, corporate shows, and small outdoor activity. With to cater to various needs, the ARCHER series is an excellent option for those looking to make a mark in the industry without breaking the bank.

Specifications

Light Source

Red :        2500 mW @ 638nm    Multi-Mode Direct-Inject diodes

Green :    3500 mW @ 525nm    Multi-Mode Direct-Inject diodes

Blue :       4000 mW @ 450nm    Multi-Mode Direct-Inject diodes

Total Output @ Projector Window: 9500mW~10000mW

Beam Diameter(Projector Window) :  5 mm

Divergence (Full angle) : < 1.2 mrad (Full angle)

Modulation : Analog 50KHZ

Laser Class :  Class IV

Scanner

Galvo : 40kpps@8° ILDA test pattern
Scan Angle : 60° Max (Optical)

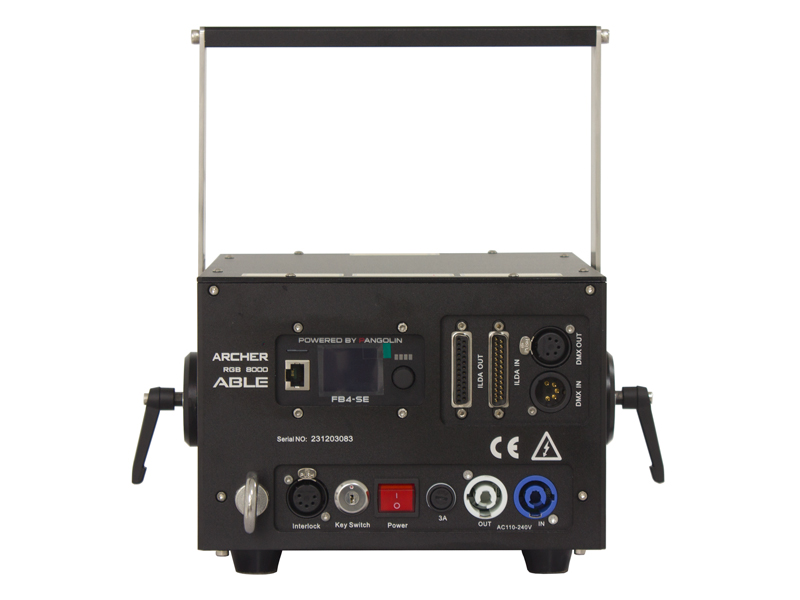

Interfaces & Controls

Control :  ILDA in (Differential) , ILDA out
Safety :  Key Switch , FDA Scan-safe Switch
Remote Interlock :  5 pins XLR
Scan Image Invert :  Invert – X , Invert – Y, Rotate 90°

Optional Components

Embedded Controller :  Pangolin FB4 (upon request)

Window Protection :  Slide-type window Cover

Electric

Operating Voltage :  AC 110V-240V
Power Consumption: 350W Max

Physical

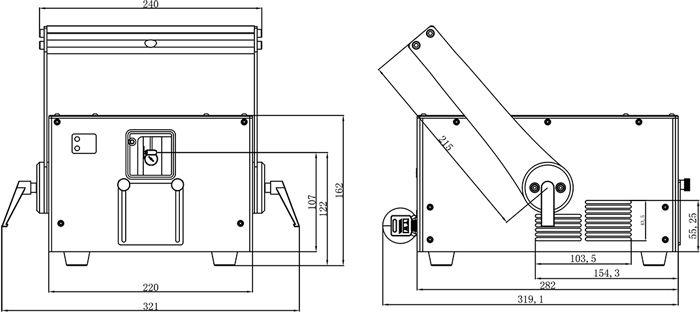

L * W * H :  319mm * 240mm * 162mm (Without Yoke)
Weight :  8.3 kg (Without Yoke)
Housing Materials :  Black Anodized Aluminum
IP grade :  IP52
Packaging :  Carton package

Compliance

Compliance:  FDA/CDRH, CE

Warranty

Warranty:  24 months parts and labor
