Reasonable cost for mighty power !
|
|

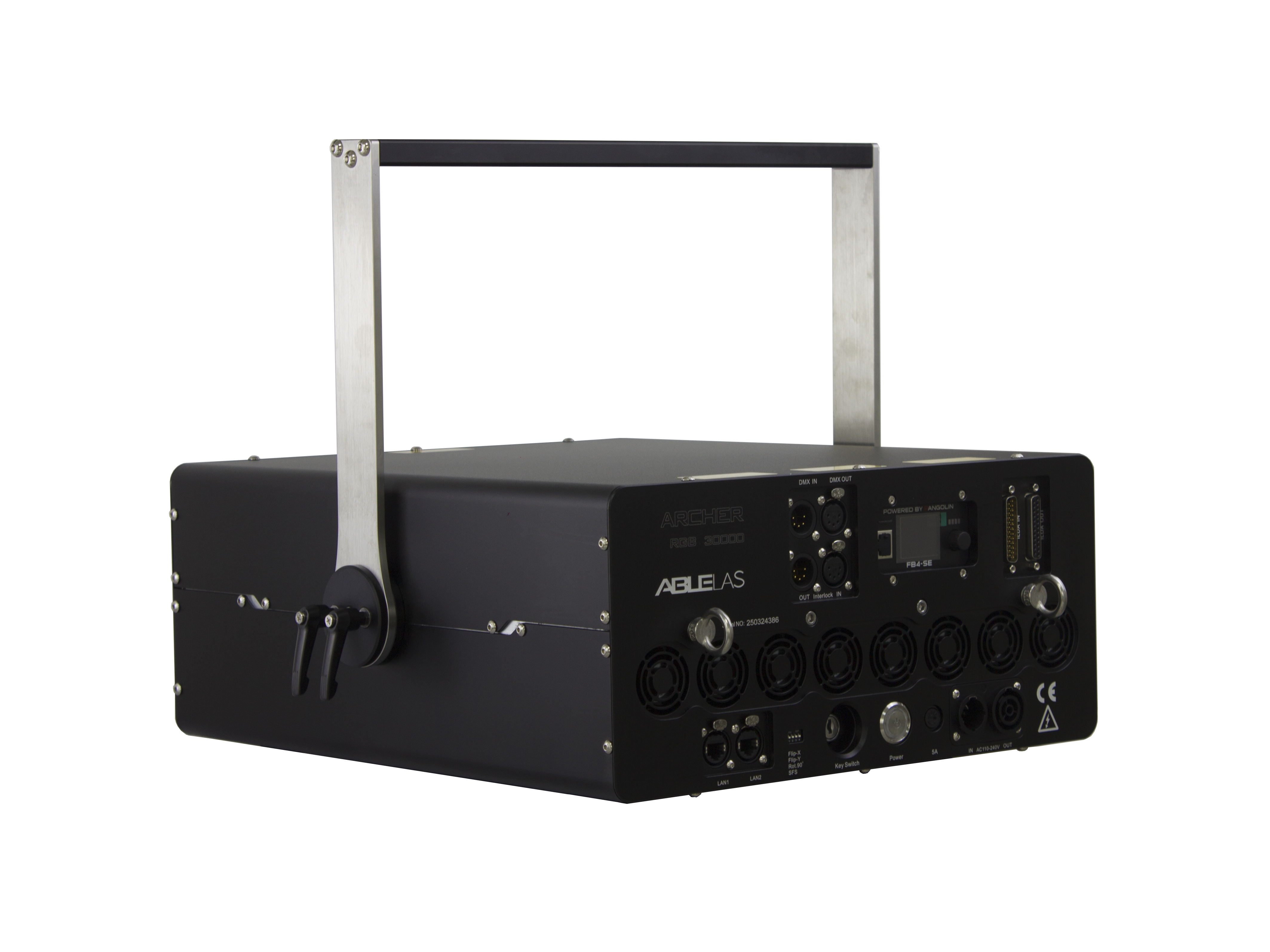

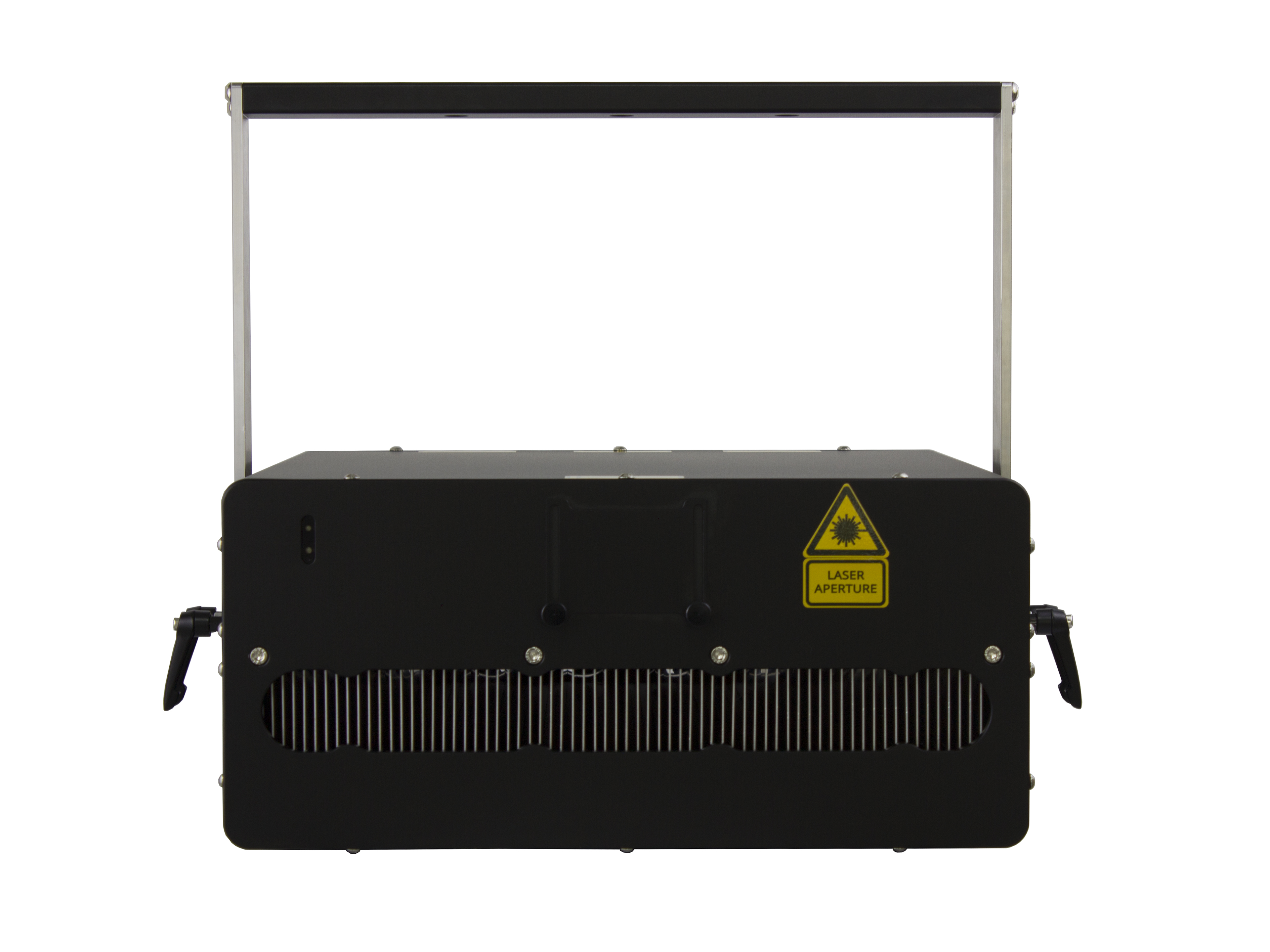

ARCHER RGB 50000 /60000 is an upgraded model from the ARHCER RGB 40000. Although the power output increases, the beam divergence remains relatively the same.
Spec Power @ Light Source
|
ARCHER RGB 50000
|
ARCHER RGB 60000
|
R:
|
11500 mw@638nm
|
11500 mw@638nm
|
G:
|
16500
mW@525nm
|
19500
mW@525nm
|
B:
|
23000
mW@450nm
|
29000
mW@450nm
|
Total Output @ Projector Window
ARCHER RGB 50000
|
ARCHER RGB 60000
|
49000 – 51000mW
|
58000 – 60000mW
|
Beam Profile
10mm*7.5mm
|
10mm*7.5mm
|
~ 1.3mrad
|
~ 1.3mrad
|
Modulation : Analog 50KHZ
Laser Class : Class IV
Scanner
Galvo : 25Kpps @ 8° ILDA test pattern (EMS 9000 digital scanner 30K@6° upon request)
Scan Angle : 50° Max Optical ( 48° Max on EMS 9000)

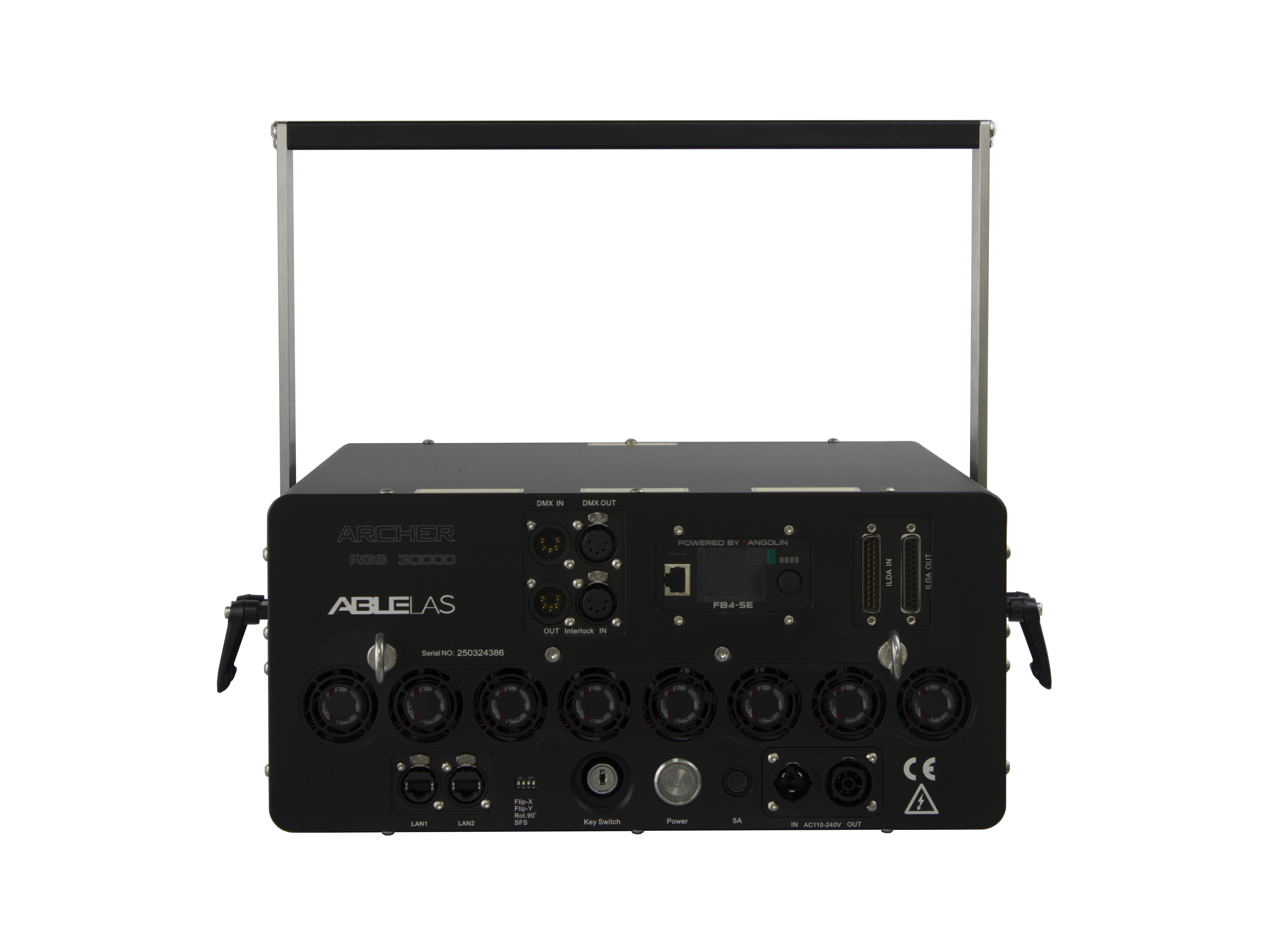

Interfaces & Controls
Control
: ILDA in (Differential) , ILDA out
Safety : Key Switch , Scan-Fail-safe
Switch
Remote Interlock : 5 pins XLR
Scan Image Invert : Invert – X , Invert
– Y
Color adjustment : Intensity R, G, B
(0-100%)
Mains : Neutrik PowerCon® TRUE1 TOP
Optional Components
Embedded Controller
: Pangolin FB4 (upon request)
Scanner : EMS 9000 (30k@6° ILDA test pattern)
Thermal Control
Cooling
: Active Cooling / Heating by TEC Peltier Elements
Ventilation
: 40mm Low noise fan * 8
Electric
Operating
Voltage : AC 110V-240V
Power Consumption: 1200W Max
Physical
L
* W * H : 442mm * 374mm * 182mm (Without
Yoke)
Weight : 28kg (Without Yoke)
Housing Materials : Black Anodized
Aluminum
IP grade : IP52
Packaging : Flight case / Peli Case
![](/updatefile/image/20201112/20201112131501_43063.jpg)
Compliance
Compliance: FDA/CDRH, CE
Warranty
Warranty: 24 months parts and labor
