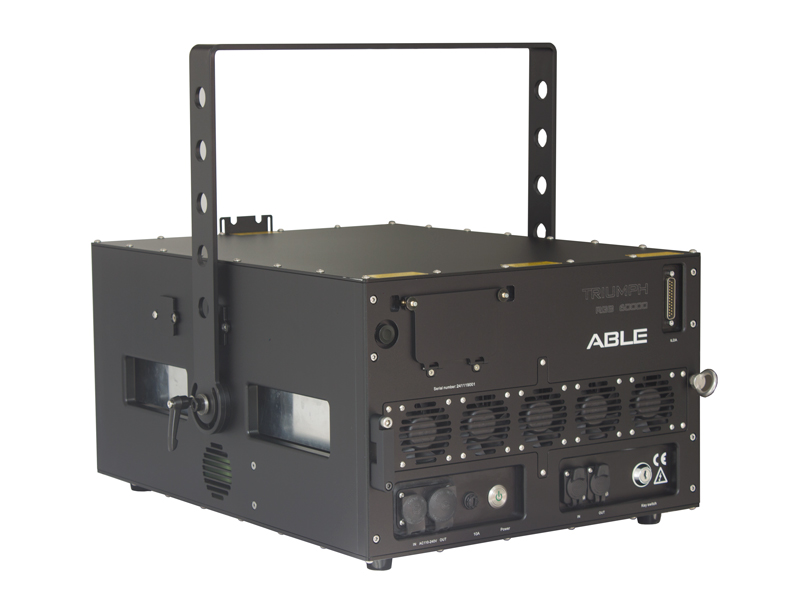

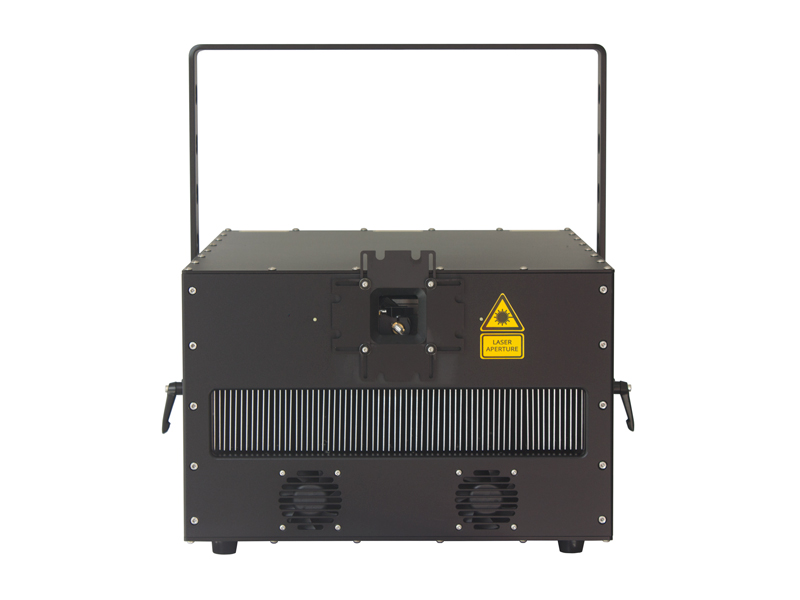

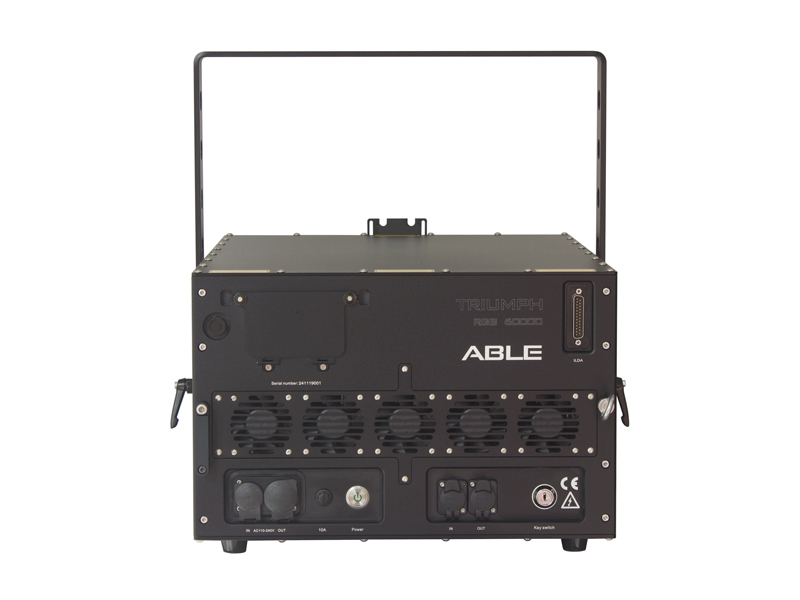

The TRIUMPH RGB IP65 rated family !

To further facilitate outdoor event applications, the new TRIUMPH RGB 60000 laser projector has a better

sealing design. It has a sturdy waterproof shell that meets the IP65 standard, is 100% waterproof, and

allows people to use it in rainy days without weather restrictions.

It is suitable for large concerts, club venues, festivals and outdoor permanent installation projects.

Spec Power @ Light Source

Total Output @ Projector Window

Beam Profile

Modulation : Analog 50KHZ

Laser Class :  Class IV

Scanner

Galvo : 25Kpps @ 8° ILDA test pattern (EMS 9000 digital scanner 30K@6° upon request)
Scan Angle : 50° Max Optical ( 48° Max on EMS 9000)

Interfaces & Controls

Control :  ILDA in (Differential)
Safety :  Key Switch
Remote Interlock :  5/8 pins from RJ45
Mains : Neutrik PowerCon® TRUE1 TOP

Optional Components

Embedded Controller :  Pangolin FB4 (upon request)
Scanner :  EMS 9000 (30k@6° ILDA test pattern)

Thermal Control

Cooling :  Active Cooling / Heating by TEC Peltier Elements
Ventilation : 60mm IP69K fan * 7

Electric

Operating Voltage :  AC 110V-240V
Power Consumption: 1200W Max

Physical

L * W * H :  520mm * 390mm * 265mm (Without Yoke)
Weight : 43kg (With Yoke)
Housing Materials :  Black Anodized Aluminum
IP grade :  IP65
Packaging :  Flight case

Compliance

Compliance:  FDA/CDRH, CE

Warranty

Warranty: 24 months parts and labor
