The TRIUMPH RGB IP65 rated family !

TRIUMPH RGB 20000 is designed for outdoor environments, featuring a housing that meets IP65 standards, which ensures it is completely waterproof and dustproof.

Encased in our robust IP65-rated housing, the TRIUMPH series are designed to stand strong against rain, snow, dust, and everything in between.

Whether you’re making outdoor shows or simply dealing with unpredictable weather, the TRIUMPH series has got your back.

Light Source

Red :        6000 mW @ 638nm

Green :    6000 mW @ 529nm

Blue :       8000 mW @ 450nm

Total Output @ Projector Window: 19000mW~21000mW

Beam Diameter(Projector Window) : ~6mm * 6.5 mm

Divergence (Full angle) :  <1.3 mrad (Full angle)

Modulation : Analog 50KHZ

Laser Class :  Class IV

Scanner

Galvo : 35Kpps @ 8° ILDA test pattern (EMS 8000 40K upon request)
Scan Angle : 60° Max (Optical)

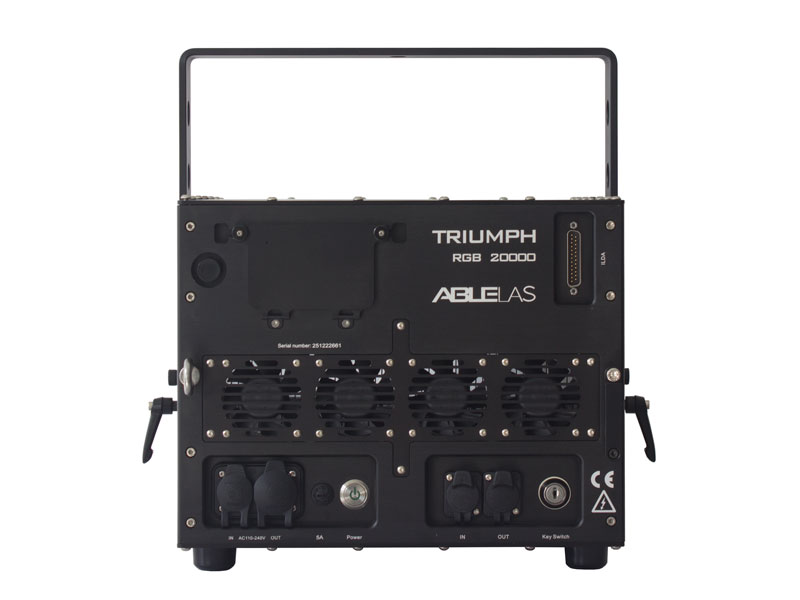

Interfaces & Controls

Control :  ILDA in (Differential)
Safety :  Key Switch
Remote Interlock :  Pin 5 & pin 8 out from Ethercon RJ45
Mains : Neutrik PowerCon® TRUE1 TOP

Optional Components

Controller :   Pangolin FB4 (upon request)

Scanner :     EMS 8000 40Kpps digital scanner (54°Max Angle)

Thermal Control

Cooling :  TEC Peltier Elements
Ventilation : 60mm IP68 thermal-controlled fan * 6

Electric

Operating Voltage :  AC 110V-240V
Power Consumption: 700W Max

Physical

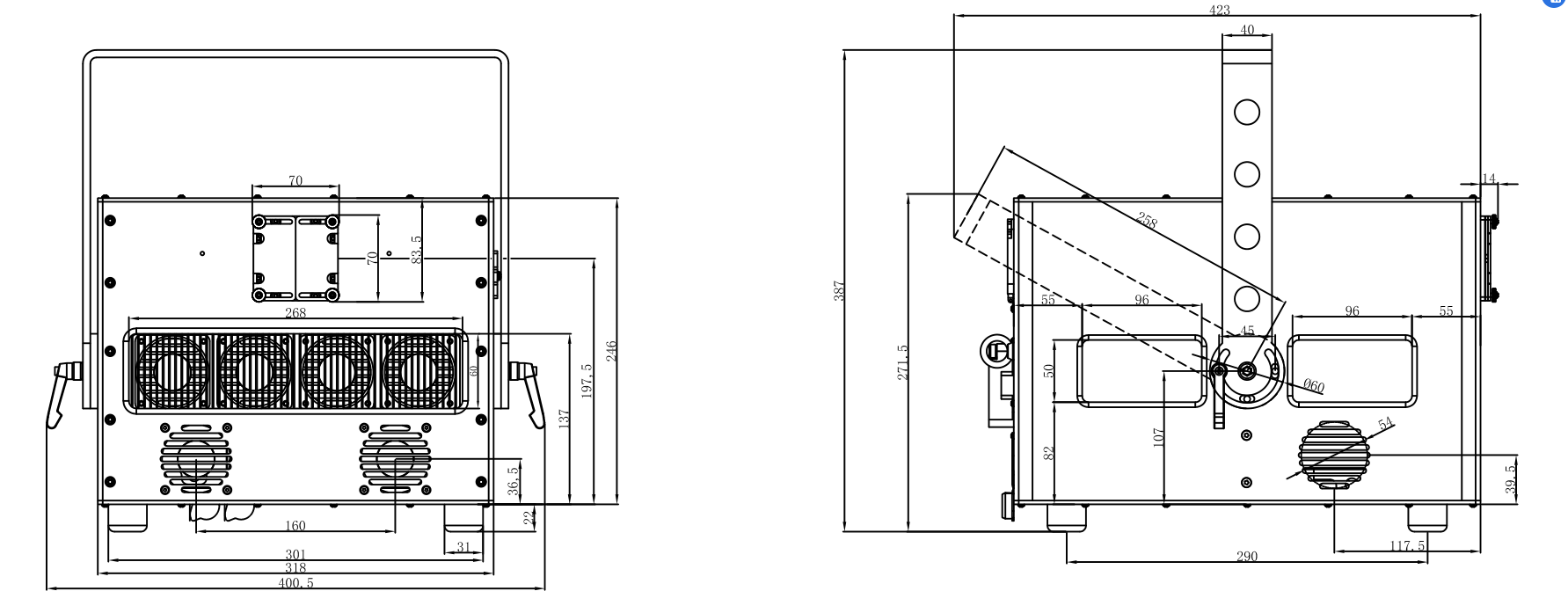

L * W * H :  418mm * 327mm * 265mm (Without Yoke& feet)
Weight : 24.5kg (Without Yoke)
Housing Materials :  Black Anodized Aluminum
IP grade :  IP65
Packaging :  Flight case / Safety case

Compliance

Compliance:  FDA/CDRH, CE

Warranty

Warranty: 24 months parts and labor
